CAVINON Antibacterial and Antifungal Agent
CAVINON is a composite antifungal antibacterial agent developed by Toagosei. It combines the long-lasting performance of inorganic antifungal agents with the powerful antibacterial and antifungal activity of organic agents. It provides excellent, durable inhibition of both mold and bacteria while maintaining a high level of safety.
Features
•High heat resistance for resin compounding
•Sustained-release action maintains antifungal performance
•Excellent water and chemical resistance
•Effective against a wide range of molds
•Product grades with antibacterial performance available
Grades
| CAVINON800 | CAVINON900 | CAVINON740HV | CAVINON940 | |
|---|---|---|---|---|
| Appearance | White to pale-yellow powder | White powder | White to pale-yellow powder | Pale-yellow powder |
| Features | Standard | Antibacterial + antifungal | For molded plastic products | For sealant and coating applications |
| Average Particle Size | 5 μm | 4 μm | 5 μm | 4 μm |
| Heat-Resistance Temperature | 250°C | 270°C | 250°C | 230°C |
* Includes products registered with SIAA (Society of International Sustaining Growth for Antibacterial Articles).

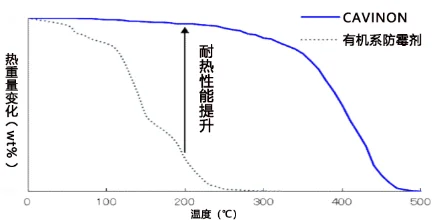

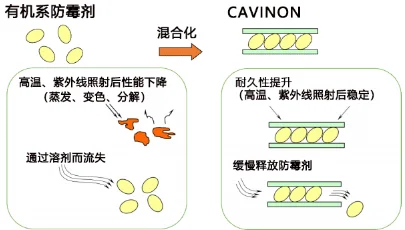

Heat Resistance and Long-Term Efficacy
Compared with organic antifungal agents, CAVINON offers greater heat resistance and can be compounded into resins.
Effect of CAVINON Antifungal Antibacterial Agent on Various Microorganisms
Minimum Inhibitory Concentration (MIC)
* Minimum antibacterial-agent concentration required to inhibit cell growth (μg/mL)
| Microorganism | Commonly Found In |
CAVINON 800 |
CAVINON 740HV |
|
|---|---|---|---|---|
| Aspergillus niger | Aspergillus niger | Interior-room and bathroom walls; exterior walls | < 6.25 | < 6.25 |
| Chaetomium globosum | Chaetomium globosum | Wood in closets and beneath floors | < 6.25 | < 6.25 |
| Talaromyces pinophilus | Talaromyces pinophilus | Interior-room and bathroom walls; exterior walls | < 6.25 | < 6.25 |
| Penicillium citrinum | Penicillium citrinum | Interior-room and bathroom walls; exterior walls | < 6.25 | < 6.25 |
| Cladosporium sphaerospermum | Cladosporium cladosporioides | Wallpapered walls and areas around air conditioners | < 6.25 | < 6.25 |
| Aureobasidium pullulans | Aureobasidium pullulans | Areas around air conditioners and walls in food-processing facilities | 6.25 | 6.25 |
| Trichoderma viride | Trichoderma virens | Sealants in bathrooms and kitchens | 50 | 100 |
| Rhizopus oryzae | Rhizopus oryzae | Concrete in wet areas and air-conditioning systems | 100 | 100 |
| Escherichia coli | Escherichia coli | Indicator of food and drinking-water contamination | 2000 | 250 |
| Staphylococcus aureus | Staphylococcus aureus | Cause of suppurative infections, sepsis, and food poisoning | 62.5 | 62.5 |
CAVINON Case Studies

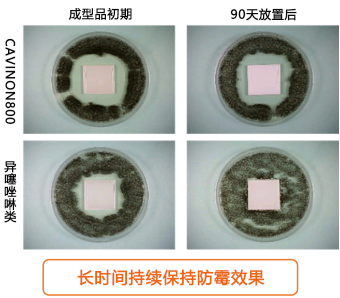

Zone-of-Inhibition Test on Molded Polyethylene Products
Test organisms: Cladosporium sphaerospermum, Aspergillus niger, Penicillium citrinum, and Talaromyces pinophilus
Test duration: 7 days
Antifungal-agent dosage: 0.5%

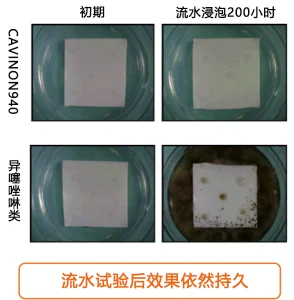

Antifungal Test on Sealant Material
Test standard: JIS Z 2911
Antifungal-agent dosage: 1%
CAVINON Safety
| Safety Test | CAVINON800 | CAVINON900 | CAVINON740HV | CAVINON940 |
|---|---|---|---|---|
| Mutagenicity | Negative | Negative | Negative | Negative |
| Acute Oral Toxicity, LD50 | >2000 mg/kg | >2000 mg/kg | >2000 mg/kg | >2000 mg/kg |
| Skin Irritation | Moderate | Low | Moderate | Moderate |
| Human Patch Test | 1.5% PP plate: non-irritating | - | 0.5% ABS plate: non-irritating | - |
Applications
|
Household Goods Home Appliances |
Washbasins, bathtubs, showerheads, cleaning tools, pails, air conditioners, washing machines, vacuum cleaners, air purifiers, refrigerators, and more | Building Materials | Paints, coatings, sealants, adhesives, cement, mortar, concrete, wall materials, flooring materials, tatami, and more |
|---|---|---|---|
| Interior Furnishings | Curtains, shower curtains, wallpaper, carpets, tablecloths, and more | Other Information | Tents, leather shoes, sports equipment, drains, hoses, and more |
